Line And Panel Mounting Adjustable Low Pressure Propane And Nitrogen Pressure Regulator JSR-3L & JSR-3LP Series

Category:

Product Features

• Line and Panel mounting pressure regulator
• Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0
• Stainless steel 316L body and bonnet for corrosive gases
• 4 ports flexible configuration
• Stable outlet pressure
• Simple outlet pressure limitation by handwheel
• Inlet filler
• Tested for use with oxygen

Typical Applications

• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment

Dimensions (mm)

Technical Data

Type: single-stage
Inlet pressure P1: max. 100 bar
Outlet pressure P2: 1/2/4/8/10/20/35/50 bar
Materials
Body regulator: see ordering info
Valve seat: PCTFE
Diaphragm: Hastelloy® C276
PTFE+Neoprene (NP option)
O-ring: Viton® (FKM)
(option) Kalrez® (FFKM)
Filter: SS 316L
Inlets and Outlets: see ordering info
Temperature range: -30℃ to +74℃
Leak rate: (to atmosphere) 1×10-8 mbar I/s He
(Via seat) 1×10-6 mbar I/s He
Flow capacity: Cv=1.7
Weight: 2.8kg

Flow Chart

Ordering Information

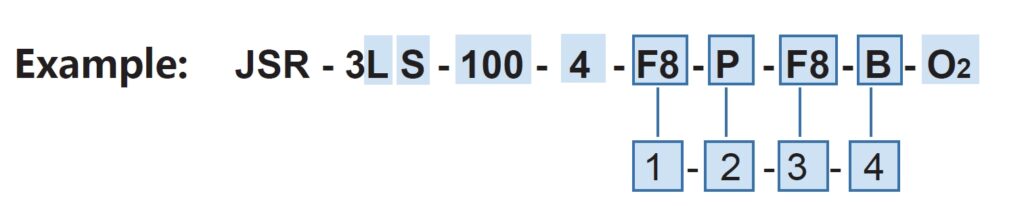

Ordering Example

*For mixed gases, please specify cylinder connection standard and thread when ordering.
